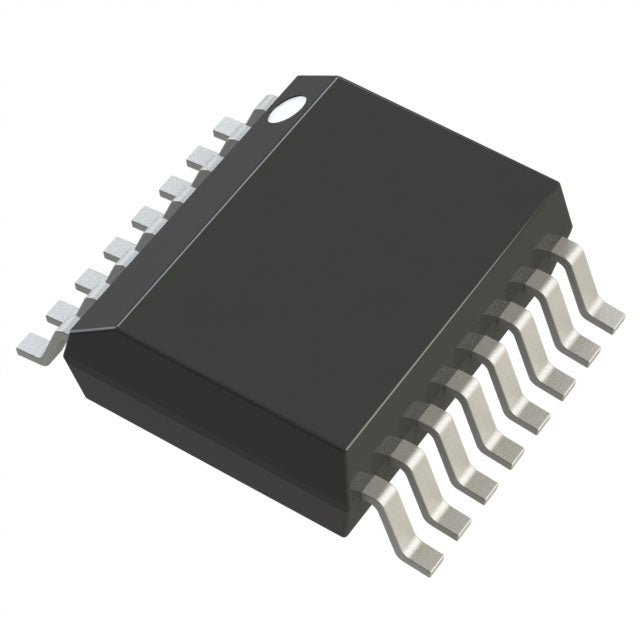

MAX1684EEE+ — catalog image
MAX1684EEE+Image for reference. See datasheet for package details.
Analog Devices Inc./Maxim IntegratedVoltage Regulator

MAX1684EEE+

Step-Down · 16-QSOP


Manufacturer part numberMAX1684EEE+
WWDParts part numberWWD-14885791793519
Catalog lifecycle statusActive
RoHS CompliantCatalog declaration · Confirm compliance documentation with your quotation
Package / case
16-SSOP (0.154", 3.90mm Width)
Output type
Adjustable (Fixed)
Output voltage
1.25V (3.3V)
Input voltage (max)
14V
Output current
1A
Operating temperature
-40°C ~ 85°C (TA)
Packaging
Tube
Datasheet ↗
View all specifications ↓

Specifications

Technical characteristics and package details.

Product documentation

DatasheetMAX1684EEE+ · Technical documentation

Check the document revision and ordering-code coverage for your application.

MAX1684EEE+ comparison

Choose a part to compare →


Sourcing & selection notes

Can similar parts be substituted directly?

Parameter similarity is a screening aid. Confirm the complete specifications, pinout and application conditions.

How are supply and commercial terms confirmed?

Availability, price, MOQ, lead time, lot information and documentation are confirmed in the quotation.

Return policy · Terms · RFQ list

Request a quote

Price, stock, MOQ and lead time are confirmed in your quotation.
