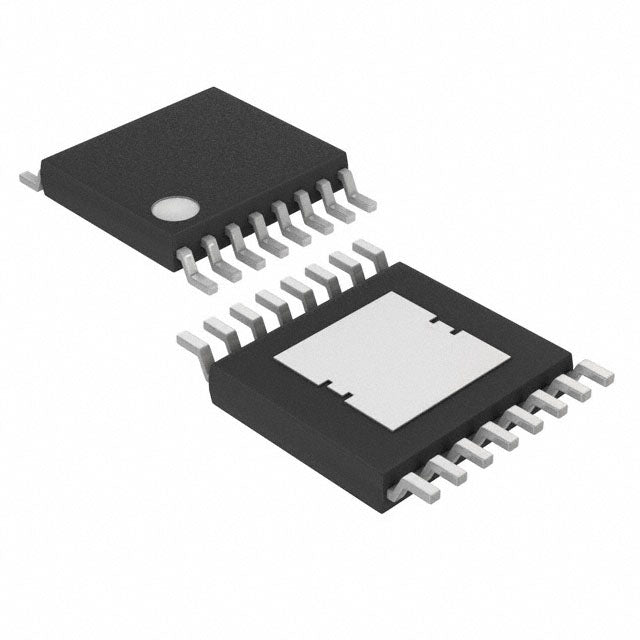

MAX16823AUE/V+–PMIC, 16-TSSOP (0.173" | Analog Devices Inc./Maxim Integrated
✓ RoHS● Active The MAX16823AUE/V+ is a pmic from Analog Devices Inc./Maxim Integrated, in 16-TSSOP (0.173" package....
SKU:
2280044
Availability:
Many In Stock
Product type:
PMIC
- $5.26
- $5.26
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$5.26
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x
✓ RoHS● Active
The MAX16823AUE/V+ is a pmic from Analog Devices Inc./Maxim Integrated, in 16-TSSOP (0.173" package. Specified operating temperature: -40°C ~ 125°C (TA).
📋 Key Specifications
- Number of Outputs:3
- Voltage - Output:39.3V
- Package / Case:16-TSSOP (0.173", 4.40mm Width) Exposed Pad
- Operating Temperature:-40°C ~ 125°C (TA)
- Product Status:Active
🎯 Typical Applications
- General electronic systems (typical applications vary by specific device)
- Industrial and commercial equipment
- Consumer electronics
- Embedded systems
❓ FAQ
What is the specified operating temperature range for MAX16823AUE/V+?
According to the specifications, the MAX16823AUE/V+ is rated for operation from -40°C ~ 125°C (TA).
What package is the MAX16823AUE/V+ available in?
The MAX16823AUE/V+ is offered in 16-TSSOP (0.173" package format.
Is the MAX16823AUE/V+ RoHS compliant?
Yes, the MAX16823AUE/V+ is listed as RoHS compliant.
Where can I find detailed specifications for MAX16823AUE/V+?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Number of Outputs | 3 |
|---|---|
| Voltage - Output | 39.3V |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Product Status | Active |
| Applications | Backlight, Lighting |
| Current - Output / Channel | 100mA |
| Dimming | PWM |
| Grade | Automotive |
| Internal Switch(s) | Yes |
| Mounting Type | Surface Mount |
| Package | Tube |
| Qualification | AEC-Q100 |
| Supplier Device Package | 16-TSSOP-EP |
| Type | Linear |
| Voltage - Supply (Max) | 40V |
| Voltage - Supply (Min) | 5.5V |
Tier Pricing
xVolume Pricing
💡 Custom Pricing Available:
For quantities exceeding 10,000 units or special requirements, please contact our sales team for a customized quote.
Datasheet
xMAX16823AUE/V+ Datasheet
Official datasheet from Analog Devices Inc./Maxim Integrated with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: Analog Devices Inc./Maxim Integrated • Format: PDF
MAX16823AUE/V+ vs MAX16823AUE+T vs MAX16823ATE/V+
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | MAX16823AUE/V+ Current | MAX16823AUE+T | MAX16823ATE/V+ |
|---|---|---|---|
| Number of Outputs | 3 | 3 | 3 |
| Voltage - Output | 39.3V | 39.3V | 39.3V |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 16-WQFN Exposed Pad |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Product Status | Active | Active | Active |
| Package | Tube | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 16-WQFN Exposed Pad |
| Type | Linear | Linear | Linear |
| Internal Switch(s) | Yes | Yes | Yes |
| Voltage - Supply (Min) | 5.5V | 5.5V | 5.5V |
| Voltage - Supply (Max) | 40V | 40V | 40V |
| Price | $5.26 | $3.08 | $4.62 |
| Availability | In Stock | In Stock | In Stock |
