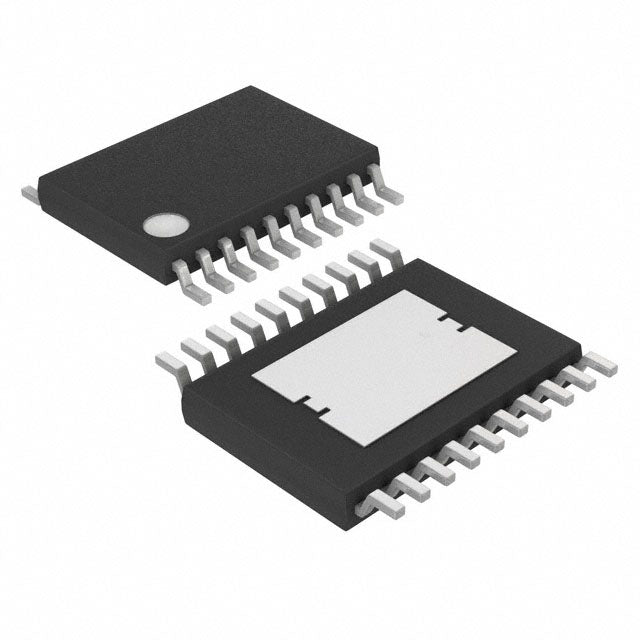

MAX16814BUUP+–PMIC, 20-TSSOP (0.173" | Analog Devices Inc./Maxim Integrated
✓ RoHS● Active The MAX16814BUUP+ is a pmic from Analog Devices Inc./Maxim Integrated, in 20-TSSOP (0.173" package....
SKU:
7804019
Availability:
Many In Stock
Product type:
PMIC
- $3.52
- $3.52
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$3.52
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x
✓ RoHS● Active
The MAX16814BUUP+ is a pmic from Analog Devices Inc./Maxim Integrated, in 20-TSSOP (0.173" package. Specified operating temperature: 0°C ~ 85°C (TA).
📋 Key Specifications
- Number of Outputs:4
- Package / Case:20-TSSOP (0.173", 4.40mm Width) Exposed Pad
- Operating Temperature:0°C ~ 85°C (TA)
- Product Status:Active
🎯 Typical Applications
- General electronic systems (typical applications vary by specific device)
- Industrial and commercial equipment
- Consumer electronics
- Embedded systems
❓ FAQ
What is the specified operating temperature range for MAX16814BUUP+?
According to the specifications, the MAX16814BUUP+ is rated for operation from 0°C ~ 85°C (TA).
What package is the MAX16814BUUP+ available in?
The MAX16814BUUP+ is offered in 20-TSSOP (0.173" package format.
Is the MAX16814BUUP+ RoHS compliant?
Yes, the MAX16814BUUP+ is listed as RoHS compliant.
Where can I find detailed specifications for MAX16814BUUP+?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Number of Outputs | 4 |
|---|---|
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Operating Temperature | 0°C ~ 85°C (TA) |
| Product Status | Active |
| Applications | Backlight, Lighting |
| Current - Output / Channel | 150mA |
| Dimming | PWM |
| Frequency | 200kHz ~ 2MHz |
| Internal Switch(s) | No |
| Mounting Type | Surface Mount |
| Package | Tube |
| Supplier Device Package | 20-TSSOP-EP |
| Topology | SEPIC, Step-Down (Buck), Step-Up (Boost) |
| Type | DC DC Controller |
| Voltage - Supply (Max) | 40V |
| Voltage - Supply (Min) | 4.75V |
Tier Pricing
xVolume Pricing
💡 Custom Pricing Available:
For quantities exceeding 10,000 units or special requirements, please contact our sales team for a customized quote.
Datasheet
xMAX16814BUUP+ Datasheet
Official datasheet from Analog Devices Inc./Maxim Integrated with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: Analog Devices Inc./Maxim Integrated • Format: PDF
MAX16814BUUP+ vs MAX16814BUTP+T vs MAX16814BUUP+T
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | MAX16814BUUP+ Current | MAX16814BUTP+T | MAX16814BUUP+T |
|---|---|---|---|
| Number of Outputs | 4 | 4 | 4 |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad | 20-WFQFN Exposed Pad | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Operating Temperature | 0°C ~ 85°C (TA) | -40°C ~ 125°C (TA) | 0°C ~ 85°C (TA) |
| Product Status | Active | Obsolete | Active |
| Package | Tube | 20-WFQFN Exposed Pad | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Type | DC DC Controller | DC DC Controller | DC DC Controller |
| Topology | SEPIC, Step-Down (Buck), Step-Up (Boost) | SEPIC, Step-Down (Buck), Step-Up (Boost) | SEPIC, Step-Down (Buck), Step-Up (Boost) |
| Internal Switch(s) | No | No | No |
| Voltage - Supply (Min) | 4.75V | 4.75V | 4.75V |
| Voltage - Supply (Max) | 40V | 40V | 40V |
| Price | $3.52 | $1.90 | $3.15 |
| Availability | In Stock | In Stock | In Stock |
