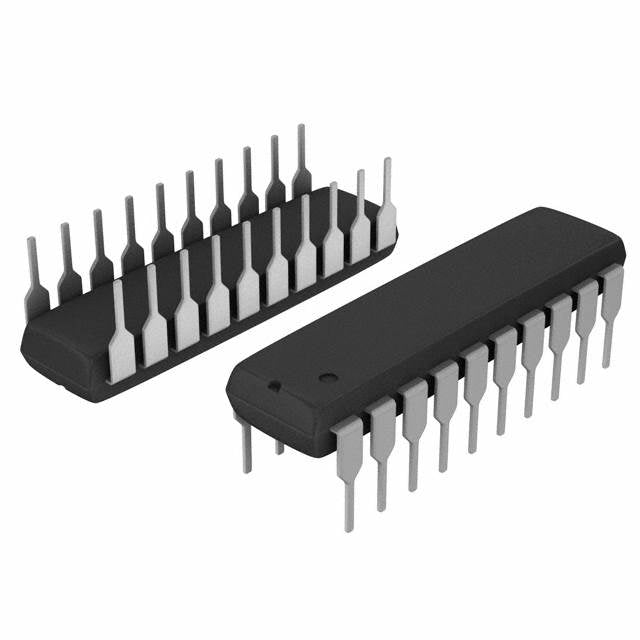

MAX166CCPP+–ADC, 20-DIP (0.300" | Analog Devices Inc./Maxim Integrated
✓ RoHS● Active The MAX166CCPP+ is a adc from Analog Devices Inc./Maxim Integrated, in 20-DIP (0.300" package....
SKU:
1511997
Availability:
Many In Stock
Product type:
ADC
- $19.09
- $19.09
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$19.09
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x
✓ RoHS● Active
The MAX166CCPP+ is a adc from Analog Devices Inc./Maxim Integrated, in 20-DIP (0.300" package. Specified operating temperature: 0°C ~ 70°C.
📋 Key Specifications
- Package / Case:20-DIP (0.300", 7.62mm)
- Operating Temperature:0°C ~ 70°C
- Product Status:Active
🎯 Typical Applications
- Data acquisition systems (typical for this category)
- Sensor signal digitization
- Audio recording and processing
- Medical instrumentation
❓ FAQ
What is the specified operating temperature range for MAX166CCPP+?
According to the specifications, the MAX166CCPP+ is rated for operation from 0°C ~ 70°C.
What package is the MAX166CCPP+ available in?
The MAX166CCPP+ is offered in 20-DIP (0.300" package format.
Is the MAX166CCPP+ RoHS compliant?
Yes, the MAX166CCPP+ is listed as RoHS compliant.
Where can I find detailed specifications for MAX166CCPP+?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Package / Case | 20-DIP (0.300", 7.62mm) |
|---|---|
| Operating Temperature | 0°C ~ 70°C |
| Product Status | Active |
| Architecture | SAR |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Input Type | Differential |
| Mounting Type | Through Hole |
| Number of A/D Converters | 1 |
| Number of Bits | 8 |
| Number of Inputs | 1 |
| Package | Tube |
| Ratio - S/H | 1:1 |
| Reference Type | External, Internal |
| Sampling Rate (Per Second) | 200k |
| Supplier Device Package | 20-PDIP |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
Datasheet
xMAX166CCPP+ Datasheet
Official datasheet from Analog Devices Inc./Maxim Integrated with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: Analog Devices Inc./Maxim Integrated • Format: PDF
MAX166CCPP+ vs MAX166CCPP vs MAX166CCWP
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | MAX166CCPP+ Current | MAX166CCPP | MAX166CCWP |
|---|---|---|---|
| Package / Case | 20-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 20-SOIC (0.295", 7.50mm Width) |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Product Status | Active | Obsolete | Obsolete |
| Package | Tube | 20-DIP (0.300", 7.62mm) | 20-SOIC (0.295", 7.50mm Width) |
| Number of Bits | 8 | 8 | 8 |
| Sampling Rate (Per Second) | 200k | 200k | 200k |
| Number of Inputs | 1 | 1 | 1 |
| Input Type | Differential | Differential | Differential |
| Data Interface | Parallel | Parallel | Parallel |
| Configuration | S/H-ADC | S/H-ADC | S/H-ADC |
| Price | $19.09 | $19.09 | $7.39 |
| Availability | In Stock | In Stock | In Stock |
