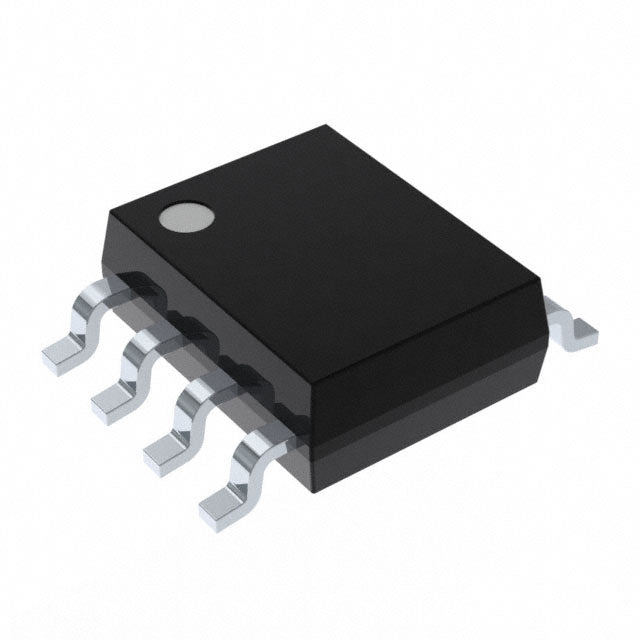

MAX1649ESA+–PMIC, 8-SOIC (0.154" | Analog Devices Inc./Maxim Integrated
✓ RoHS● Active The MAX1649ESA+ is a pmic from Analog Devices Inc./Maxim Integrated, in 8-SOIC (0.154" package....
SKU:
947764
Availability:
Many In Stock
Product type:
PMIC
- $8.45
- $8.45
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$8.45
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x
✓ RoHS● Active
The MAX1649ESA+ is a pmic from Analog Devices Inc./Maxim Integrated, in 8-SOIC (0.154" package. Specified operating temperature: -40°C ~ 85°C (TA).
📋 Key Specifications
- Output Type:Transistor Driver
- Number of Outputs:1
- Package / Case:8-SOIC (0.154", 3.90mm Width)
- Operating Temperature:-40°C ~ 85°C (TA)
- Product Status:Active
🎯 Typical Applications
- General electronic systems (typical applications vary by specific device)
- Industrial and commercial equipment
- Consumer electronics
- Embedded systems
❓ FAQ
What is the specified operating temperature range for MAX1649ESA+?
According to the specifications, the MAX1649ESA+ is rated for operation from -40°C ~ 85°C (TA).
What package is the MAX1649ESA+ available in?
The MAX1649ESA+ is offered in 8-SOIC (0.154" package format.
Is the MAX1649ESA+ RoHS compliant?
Yes, the MAX1649ESA+ is listed as RoHS compliant.
Where can I find detailed specifications for MAX1649ESA+?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Output Type | Transistor Driver |
|---|---|
| Number of Outputs | 1 |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Product Status | Active |
| Clock Sync | No |
| Control Features | Enable |
| Duty Cycle (Max) | 96.5% |
| Frequency - Switching | Up to 300kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Output Configuration | Positive |
| Output Phases | 1 |
| Package | Tube |
| Supplier Device Package | 8-SOIC |
| Synchronous Rectifier | No |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 16V |
Datasheet
xMAX1649ESA+ Datasheet
Official datasheet from Analog Devices Inc./Maxim Integrated with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: Analog Devices Inc./Maxim Integrated • Format: PDF
MAX1649ESA+ vs MAX1649ESA vs MAX1649CSA+
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | MAX1649ESA+ Current | MAX1649ESA | MAX1649CSA+ |
|---|---|---|---|
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver |
| Number of Outputs | 1 | 1 | 1 |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | 0°C ~ 70°C (TA) |
| Product Status | Active | Obsolete | Active |
| Package | Tube | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) |
| Function | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck |
| Output Phases | 1 | 1 | 1 |
| Price | $8.45 | $8.45 | $5.85 |
| Availability | In Stock | In Stock | In Stock |
