MAX16046ETN+ — catalog image

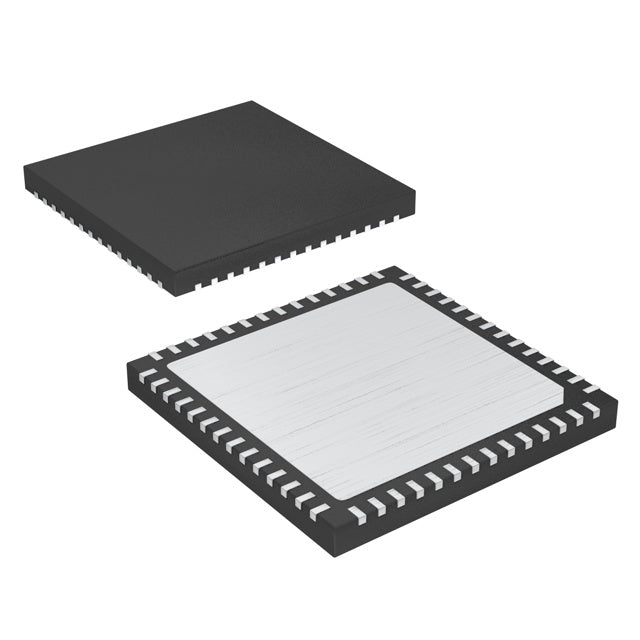

MAX16046ETN+Image for reference. See datasheet for package details.
Analog Devices Inc./Maxim IntegratedPMIC

MAX16046ETN+

System Manager · 56-TQFN (8x8)


Manufacturer part numberMAX16046ETN+
WWDParts part numberWWD-14885771772271
Catalog lifecycle statusActive
RoHS CompliantCatalog declaration · Confirm compliance documentation with your quotation
Package / case
56-WFQFN Exposed Pad
Type
System Manager
Monitored voltages
12
Output
Open Drain, Push-Pull
Reset
Active Low
Operating temperature
-40°C ~ 85°C (TA)
Packaging
Tube
Datasheet ↗
View all specifications ↓

Specifications

Technical characteristics and package details.

Product documentation

DatasheetMAX16046ETN+ · Technical documentation

Check the document revision and ordering-code coverage for your application.

MAX16046ETN+ comparison

Choose a part to compare →


Sourcing & selection notes

Can similar parts be substituted directly?

Parameter similarity is a screening aid. Confirm the complete specifications, pinout and application conditions.

How are supply and commercial terms confirmed?

Availability, price, MOQ, lead time, lot information and documentation are confirmed in the quotation.

Return policy · Terms · RFQ list

Components for your design

Power sequencing and monitoring

MAX16046 evaluation board · 19-4050 Rev 1, March 2009

Reference design ↗
Adjustable linear regulation

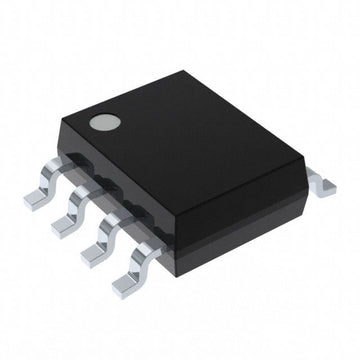

MAX1658ESA+

Analog Devices Inc./Maxim Integrated

MAX1658ESA+
Package
8-SOIC (0.154", 3.90mm Width)
BOM reference
U1, U2

These parts appear in the linked reference design. Check its revision, circuit and operating requirements for your application.
