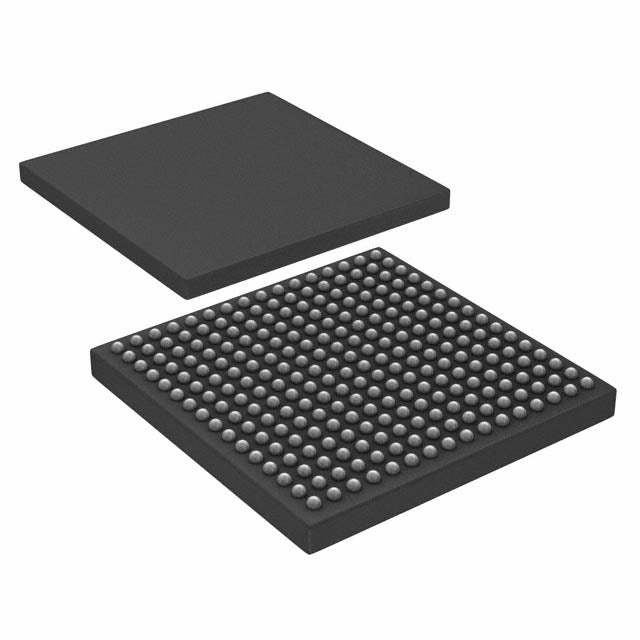

M2S005S-1VF256–SoC, ARM® Cortex®-M3 @ 166MHz, 256-LFBGA | Microchip Technology
● Active The M2S005S-1VF256 is a soc from Microchip Technology, featuring ARM® Cortex®-M3 running at 166MHz, in...
- $25.39
- $25.39
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$25.39
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x● Active
The M2S005S-1VF256 is a soc from Microchip Technology, featuring ARM® Cortex®-M3 running at 166MHz, in 256-LFBGA package. Specified operating temperature: 0°C ~ 85°C (TJ).
📋 Key Specifications
- Core Processor:ARM® Cortex®-M3
- Speed:166MHz
- Architecture:MCU, FPGA
- RAM Size:64KB
- Package / Case:256-LFBGA
- Operating Temperature:0°C ~ 85°C (TJ)
- Connectivity:CANbus, Ethernet, I2C, SPI, UART/USART, USB
🎯 Typical Applications
- Consumer electronics (typical for this category)
- Network equipment and routers
- Digital signage systems
- Streaming and media devices
- Smart home controllers
❓ FAQ
What is the specified operating temperature range for M2S005S-1VF256?
According to the specifications, the M2S005S-1VF256 is rated for operation from 0°C ~ 85°C (TJ).
What package is the M2S005S-1VF256 available in?
The M2S005S-1VF256 is offered in 256-LFBGA package format.
What processor is integrated in the M2S005S-1VF256?
The M2S005S-1VF256 integrates ARM® Cortex®-M3 processor.
Where can I find detailed specifications for M2S005S-1VF256?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Core Processor | ARM® Cortex®-M3 |
|---|---|
| Speed | 166MHz |
| Architecture | MCU, FPGA |
| RAM Size | 64KB |
| Package / Case | 256-LFBGA |
| Operating Temperature | 0°C ~ 85°C (TJ) |
| Connectivity | CANbus, Ethernet, I2C, SPI, UART/USART, USB |
| Product Status | Active |
| Flash Size | 128KB |
| Package | Tray |
| Primary Attributes | FPGA - 5K Logic Modules |
| Supplier Device Package | 256-FPBGA (14x14) |
Tier Pricing
xVolume Pricing
💡 Custom Pricing Available:
For quantities exceeding 10,000 units or special requirements, please contact our sales team for a customized quote.
Datasheet
xM2S005S-1VF256 Datasheet
Official datasheet from Microchip Technology with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: Microchip Technology • Format: PDF
M2S005S-1VF256 vs M2S005S-1TQG144T2 vs M2S005S-1VF256I
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | M2S005S-1VF256 Current | M2S005S-1TQG144T2 | M2S005S-1VF256I |
|---|---|---|---|
| Core Processor | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 |
| Speed | 166MHz | 166MHz | 166MHz |
| Architecture | MCU, FPGA | MCU, FPGA | MCU, FPGA |
| RAM Size | 64KB | 64KB | 64KB |
| Package / Case | 256-LFBGA | 144-LQFP | 256-LFBGA |
| Operating Temperature | 0°C ~ 85°C (TJ) | 0°C ~ 85°C (TJ) | -40°C ~ 100°C (TJ) |
| Connectivity | CANbus, Ethernet, I2C, SPI, UART/USART, USB | CANbus, Ethernet, I2C, SPI, UART/USART, USB | CANbus, Ethernet, I2C, SPI, UART/USART, USB |
| Product Status | Active | Active | Active |
| Price | $25.39 | $0.00 | $28.12 |
| Availability | In Stock | In Stock | In Stock |
