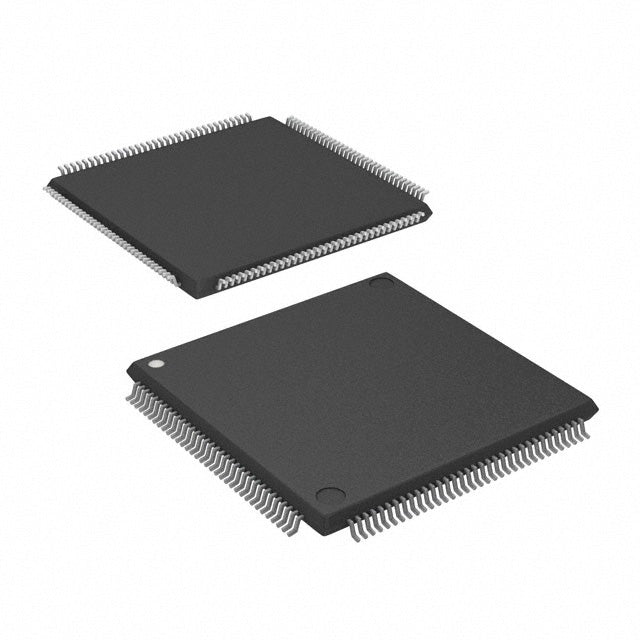

M2S005-TQG144I–SoC, ARM® Cortex®-M3 @ 166MHz, 144-LQFP | Microchip Technology
✓ RoHS● Active The M2S005-TQG144I is a soc from Microchip Technology, featuring ARM® Cortex®-M3 running at 166MHz,...
- $19.25
- $19.25
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$19.25
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x
✓ RoHS● Active
The M2S005-TQG144I is a soc from Microchip Technology, featuring ARM® Cortex®-M3 running at 166MHz, in 144-LQFP package. Specified operating temperature: -40°C ~ 100°C (TJ).
📋 Key Specifications
- Core Processor:ARM® Cortex®-M3
- Speed:166MHz
- Architecture:MCU, FPGA
- RAM Size:64KB
- Package / Case:144-LQFP
- Operating Temperature:-40°C ~ 100°C (TJ)
- Connectivity:CANbus, Ethernet, I2C, SPI, UART/USART, USB
🎯 Typical Applications
- Industrial automation systems (typical for this category)
- Programmable logic controllers (PLC)
- Factory and process control equipment
- Building management systems
- Industrial IoT gateways
❓ FAQ
What is the specified operating temperature range for M2S005-TQG144I?
According to the specifications, the M2S005-TQG144I is rated for operation from -40°C ~ 100°C (TJ).
What package is the M2S005-TQG144I available in?
The M2S005-TQG144I is offered in 144-LQFP package format.
What processor is integrated in the M2S005-TQG144I?
The M2S005-TQG144I integrates ARM® Cortex®-M3 processor.
Is the M2S005-TQG144I RoHS compliant?
Yes, the M2S005-TQG144I is listed as RoHS compliant.
Where can I find detailed specifications for M2S005-TQG144I?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Core Processor | ARM® Cortex®-M3 |
|---|---|
| Speed | 166MHz |
| Architecture | MCU, FPGA |
| RAM Size | 64KB |
| Package / Case | 144-LQFP |
| Operating Temperature | -40°C ~ 100°C (TJ) |
| Connectivity | CANbus, Ethernet, I2C, SPI, UART/USART, USB |
| Product Status | Active |
| Flash Size | 128KB |
| Package | Tray |
| Primary Attributes | FPGA - 5K Logic Modules |
| Supplier Device Package | 144-TQFP (20x20) |
Tier Pricing
xVolume Pricing
💡 Custom Pricing Available:
For quantities exceeding 10,000 units or special requirements, please contact our sales team for a customized quote.
Datasheet
xM2S005-TQG144I Datasheet
Official datasheet from Microchip Technology with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: Microchip Technology • Format: PDF
M2S005-TQG144I vs M2S005-TQG144 vs M2S005-VF256
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | M2S005-TQG144I Current | M2S005-TQG144 | M2S005-VF256 |
|---|---|---|---|
| Core Processor | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 |
| Speed | 166MHz | 166MHz | 166MHz |
| Architecture | MCU, FPGA | MCU, FPGA | MCU, FPGA |
| RAM Size | 64KB | 64KB | 64KB |
| Package / Case | 144-LQFP | 144-LQFP | 256-LFBGA |
| Operating Temperature | -40°C ~ 100°C (TJ) | 0°C ~ 85°C (TJ) | 0°C ~ 85°C (TJ) |
| Connectivity | CANbus, Ethernet, I2C, SPI, UART/USART, USB | CANbus, Ethernet, I2C, SPI, UART/USART, USB | CANbus, Ethernet, I2C, SPI, UART/USART, USB |
| Product Status | Active | Active | Active |
| RoHS | Compliant | Compliant | — |
| Price | $19.25 | $16.94 | $19.33 |
| Availability | In Stock | In Stock | In Stock |
