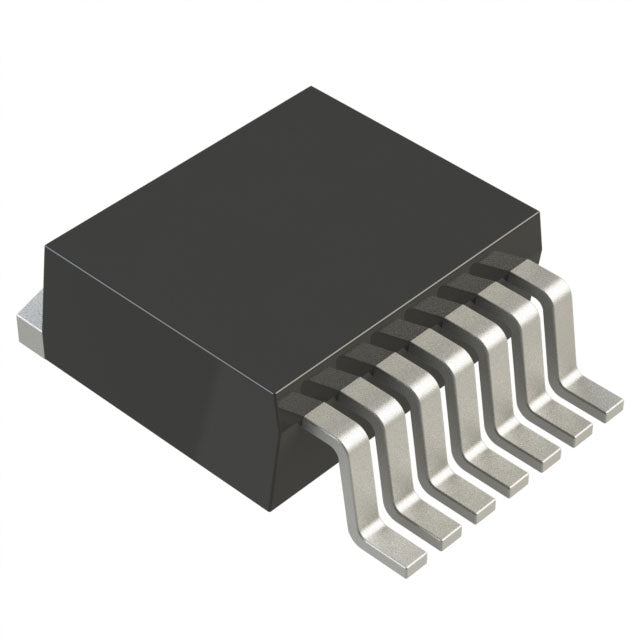

LT1076HVCR#PBF–Voltage Regulator, TO-263-8 | Analog Devices Inc.
✓ RoHS● Active The LT1076HVCR#PBF is a voltage regulator from Analog Devices Inc., in TO-263-8 package. Specified...
- $21.58
- $21.58
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$21.58
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x
✓ RoHS● Active
The LT1076HVCR#PBF is a voltage regulator from Analog Devices Inc., in TO-263-8 package. Specified operating temperature: 0°C ~ 70°C (TA).
📋 Key Specifications
- Output Type:Adjustable
- Voltage - Output (Min/Fixed):2.5V
- Voltage - Output (Max):35V
- Current - Output:2A (Switch)
- Voltage - Input (Max):64V
- Package / Case:TO-263-8, D2PAK (7 Leads + Tab), TO-263CA
- Operating Temperature:0°C ~ 70°C (TA)
- Product Status:Active
🎯 Typical Applications
- Board-level power regulation (typical for this category)
- Point-of-load power supply
- Battery-powered devices
- Low-noise analog circuits
❓ FAQ
What is the specified operating temperature range for LT1076HVCR#PBF?
According to the specifications, the LT1076HVCR#PBF is rated for operation from 0°C ~ 70°C (TA).
What package is the LT1076HVCR#PBF available in?
The LT1076HVCR#PBF is offered in TO-263-8 package format.
Is the LT1076HVCR#PBF RoHS compliant?
Yes, the LT1076HVCR#PBF is listed as RoHS compliant.
Where can I find detailed specifications for LT1076HVCR#PBF?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Output Type | Adjustable |
|---|---|
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | 35V |
| Current - Output | 2A (Switch) |
| Voltage - Input (Max) | 64V |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Product Status | Active |
| Frequency - Switching | 100kHz |
| Function | Step-Up, Step-Down, Step-Up/Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | Positive or Negative |
| Package | Tube |
| Supplier Device Package | DDPAK-7 |
| Synchronous Rectifier | No |
| Topology | Buck, Boost, Flyback |
| Voltage - Input (Min) | 8V |
Tier Pricing
xVolume Pricing
💡 Custom Pricing Available:
For quantities exceeding 10,000 units or special requirements, please contact our sales team for a customized quote.
Datasheet
xLT1076HVCR#PBF Datasheet
Official datasheet from Analog Devices Inc. with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: Analog Devices Inc. • Format: PDF
LT1076HVCR#PBF vs LT1076HVCR#TR vs LT1076HVCT#PBF
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | LT1076HVCR#PBF Current | LT1076HVCR#TR | LT1076HVCT#PBF |
|---|---|---|---|
| Output Type | Adjustable | Adjustable | Adjustable |
| Voltage - Output (Min/Fixed) | 2.5V | 2.5V | 2.5V |
| Voltage - Output (Max) | 35V | 35V | 35V |
| Current - Output | 2A (Switch) | 2A (Switch) | 2A (Switch) |
| Voltage - Input (Max) | 64V | 64V | 64V |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | TO-220-5 |
| Operating Temperature | 0°C ~ 70°C (TA) | — | 0°C ~ 70°C (TA) |
| Product Status | Active | Discontinued at Digi-Key | Active |
| RoHS | Compliant | Compliant | Compliant |
| Price | $21.58 | $0.00 | $18.07 |
| Availability | In Stock | In Stock | In Stock |
