LT1009IZ#TR–Voltage Reference, 2.5V, ±0.2%, TO-226-3 | Analog Devices Inc.
✓ RoHS● Discontinued at Digi-Key The LT1009IZ#TR is a voltage reference from Analog Devices Inc., in TO-226-3...
- $0.00
- $0.00
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$0.00
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x
✓ RoHS● Discontinued at Digi-Key

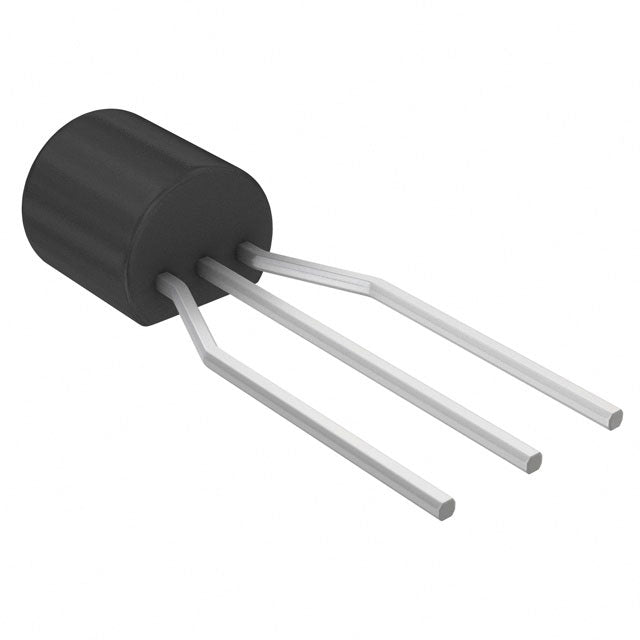

The LT1009IZ#TR is a voltage reference from Analog Devices Inc., in TO-226-3 package. Specified operating temperature: -40°C ~ 85°C (TA).
📋 Key Specifications
- Voltage - Output (Min/Fixed):2.5V
- Tolerance:±0.2%
- Reference Type:Shunt
- Output Type:Fixed
- Package / Case:TO-226-3, TO-92-3 (TO-226AA) Formed Leads
- Mounting Type:Through Hole
- Operating Temperature:-40°C ~ 85°C (TA)
🎯 Typical Applications
- Precision measurement systems (typical for this category)
- Data acquisition (DAQ) systems
- Analog-to-digital converter (ADC) reference
- Calibration and test equipment
- Power supply feedback circuits
❓ FAQ
What is the specified operating temperature range for LT1009IZ#TR?
According to the specifications, the LT1009IZ#TR is rated for operation from -40°C ~ 85°C (TA).
What package is the LT1009IZ#TR available in?
The LT1009IZ#TR is offered in TO-226-3 package format.
What is the output voltage of LT1009IZ#TR?
The LT1009IZ#TR provides 2.5V output voltage as specified.
Is the LT1009IZ#TR RoHS compliant?
Yes, the LT1009IZ#TR is listed as RoHS compliant.
Where can I find detailed specifications for LT1009IZ#TR?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Voltage - Output (Min/Fixed) | 2.5V |
|---|---|
| Tolerance | ±0.2% |
| Reference Type | Shunt |
| Output Type | Fixed |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) Formed Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Current - Output | 10 mA |
| Product Status | Discontinued at Digi-Key |
| Current - Cathode | 400 µA |
| Package | Tape & Reel (TR) |
| Supplier Device Package | TO-92-3 |
| Temperature Coefficient | 35ppm/°C |
Datasheet
xLT1009IZ#TR Datasheet
Official datasheet from Analog Devices Inc. with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: Analog Devices Inc. • Format: PDF
LT1009IZ#TR vs LT1009IPWR vs LT1009IPWG4
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | LT1009IZ#TR Current | LT1009IPWR | LT1009IPWG4 |
|---|---|---|---|
| Voltage - Output (Min/Fixed) | 2.5V | 2.5V | 2.5V |
| Tolerance | ±0.2% | ±0.4% | ±0.4% |
| Reference Type | Shunt | Shunt | Shunt |
| Output Type | Fixed | Fixed | Fixed |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | 8-TSSOP (0.173", 4.40mm Width) | 8-TSSOP (0.173", 4.40mm Width) |
| Mounting Type | Through Hole | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Current - Output | 10 mA | 10 mA | 10 mA |
| Product Status | Discontinued at Digi-Key | Active | Obsolete |
| RoHS | Compliant | Compliant | Compliant |
| Price | $0.00 | $1.17 | $0.53 |
| Availability | In Stock | In Stock | In Stock |
