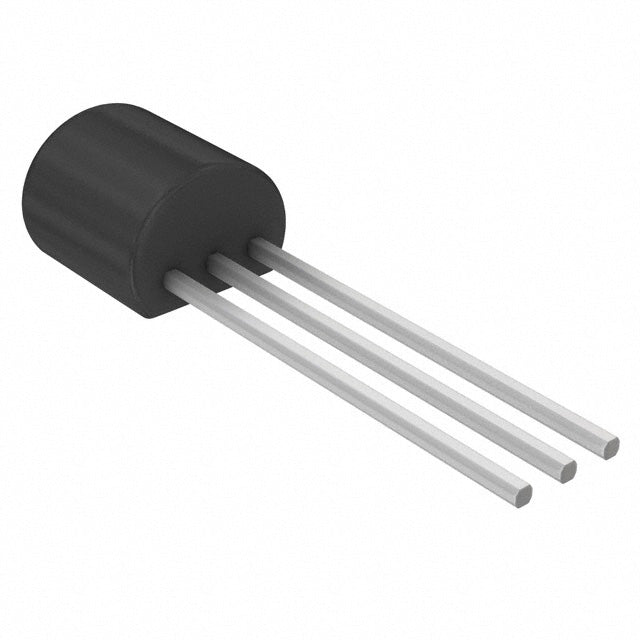

LT1009CLP–Voltage Reference, 2.5V, ±0.2%, TO-226-3 | Texas Instruments
✓ RoHS● Active The LT1009CLP is a voltage reference from Texas Instruments, in TO-226-3 package. Specified operating...
- $1.73
- $1.73
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$1.73
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x
✓ RoHS● Active
The LT1009CLP is a voltage reference from Texas Instruments, in TO-226-3 package. Specified operating temperature: 0°C ~ 70°C (TA).
📋 Key Specifications
- Voltage - Output (Min/Fixed):2.5V
- Tolerance:±0.2%
- Reference Type:Shunt
- Output Type:Fixed
- Package / Case:TO-226-3, TO-92-3 (TO-226AA)
- Mounting Type:Through Hole
- Operating Temperature:0°C ~ 70°C (TA)
🎯 Typical Applications
- Precision measurement systems (typical for this category)
- Data acquisition (DAQ) systems
- Analog-to-digital converter (ADC) reference
- Calibration and test equipment
- Power supply feedback circuits
❓ FAQ
What is the specified operating temperature range for LT1009CLP?
According to the specifications, the LT1009CLP is rated for operation from 0°C ~ 70°C (TA).
What package is the LT1009CLP available in?
The LT1009CLP is offered in TO-226-3 package format.
What is the output voltage of LT1009CLP?
The LT1009CLP provides 2.5V output voltage as specified.
Is the LT1009CLP RoHS compliant?
Yes, the LT1009CLP is listed as RoHS compliant.
Where can I find detailed specifications for LT1009CLP?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Voltage - Output (Min/Fixed) | 2.5V |
|---|---|
| Tolerance | ±0.2% |
| Reference Type | Shunt |
| Output Type | Fixed |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Mounting Type | Through Hole |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Current - Output | 10 mA |
| Product Status | Active |
| Current - Cathode | 400 µA |
| Package | Bulk |
| Supplier Device Package | TO-92-3 |
| Temperature Coefficient | 25ppm/°C |
Tier Pricing
xVolume Pricing
💡 Custom Pricing Available:
For quantities exceeding 10,000 units or special requirements, please contact our sales team for a customized quote.
Datasheet
xLT1009CLP Datasheet
Official datasheet from Texas Instruments with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: Texas Instruments • Format: PDF
LT1009CLP vs LT1009CH vs LT1009CPW
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | LT1009CLP Current | LT1009CH | LT1009CPW |
|---|---|---|---|
| Voltage - Output (Min/Fixed) | 2.5V | 2.5V | 2.5V |
| Tolerance | ±0.2% | — | ±0.4% |
| Reference Type | Shunt | Shunt | Shunt |
| Output Type | Fixed | — | Fixed |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) | — | 8-TSSOP (0.173", 4.40mm Width) |
| Mounting Type | Through Hole | — | Surface Mount |
| Operating Temperature | 0°C ~ 70°C (TA) | — | 0°C ~ 70°C (TA) |
| Current - Output | 10 mA | — | 10 mA |
| Product Status | Active | Obsolete | Obsolete |
| RoHS | Compliant | — | Compliant |
| Price | $1.73 | $0.00 | $0.53 |
| Availability | In Stock | In Stock | In Stock |
