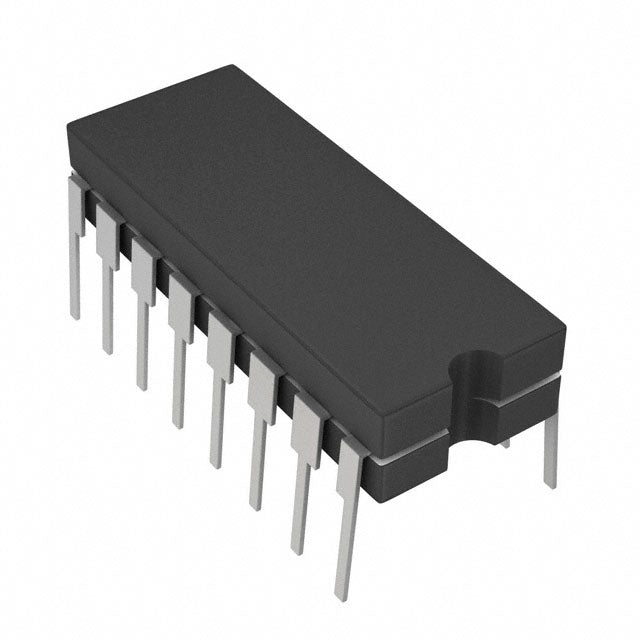

5962-9073103MEA–Interface IC, 16-CDIP (0.300" | Analog Devices Inc./Maxim Integrated
✓ RoHS● Discontinued at Digi-Key The 5962-9073103MEA is a interface ic from Analog Devices Inc./Maxim Integrated, in...
SKU:
7391998
Availability:
Many In Stock
Product type:
Interface IC
- $96.40
- $96.40
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$96.40
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x
✓ RoHS● Discontinued at Digi-Key
The 5962-9073103MEA is a interface ic from Analog Devices Inc./Maxim Integrated, in 16-CDIP (0.300" package. Specified operating temperature: -55°C ~ 125°C (TA).
📋 Key Specifications
- Package / Case:16-CDIP (0.300", 7.62mm)
- Operating Temperature:-55°C ~ 125°C (TA)
- Product Status:Discontinued at Digi-Key
🎯 Typical Applications
- Communication interfaces (typical for this category)
- Level shifting and signal conditioning
- Protocol conversion
- System interconnects
❓ FAQ
What is the specified operating temperature range for 5962-9073103MEA?
According to the specifications, the 5962-9073103MEA is rated for operation from -55°C ~ 125°C (TA).
What package is the 5962-9073103MEA available in?
The 5962-9073103MEA is offered in 16-CDIP (0.300" package format.
Is the 5962-9073103MEA RoHS compliant?
Yes, the 5962-9073103MEA is listed as RoHS compliant.
Where can I find detailed specifications for 5962-9073103MEA?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Package / Case | 16-CDIP (0.300", 7.62mm) |
|---|---|
| Operating Temperature | -55°C ~ 125°C (TA) |
| Product Status | Discontinued at Digi-Key |
| Channel Capacitance (CS(off), CD(off)) | 9pF, 9pF |
| Channel-to-Channel Matching (ΔRon) | 3Ohm (Max) |
| Charge Injection | 5pC |
| Crosstalk | -85dB @ 1MHz |
| Current - Leakage (IS(off)) (Max) | 250pA |
| Mounting Type | Through Hole |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 30Ohm |
| Package | Tube |
| Supplier Device Package | 16-CDIP |
| Switch Circuit | SPST - NO/NC |
| Switch Time (Ton, Toff) (Max) | 175ns, 145ns |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V |
| Voltage - Supply, Single (V+) | 10V ~ 30V |
Tier Pricing
xVolume Pricing
💡 Custom Pricing Available:
For quantities exceeding 10,000 units or special requirements, please contact our sales team for a customized quote.
Datasheet
x5962-9073103MEA Datasheet
Official datasheet from Analog Devices Inc./Maxim Integrated with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: Analog Devices Inc./Maxim Integrated • Format: PDF
5962-9073103MEA vs 5962-9073102MEA vs 5962-9073102M2C
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | 5962-9073103MEA Current | 5962-9073102MEA | 5962-9073102M2C |
|---|---|---|---|
| Package / Case | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | — |
| Operating Temperature | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | — |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Obsolete |
| Package | Tube | 16-CDIP (0.300", 7.62mm) | Tube |
| Switch Circuit | SPST - NO/NC | SPST - NO | — |
| Multiplexer/Demultiplexer Circuit | 1 | 1 | — |
| Number of Circuits | 4 | 4 | — |
| On-State Resistance (Max) | 30Ohm | 30Ohm | — |
| Channel-to-Channel Matching (ΔRon) | 3Ohm (Max) | 3Ohm (Max) | — |
| Voltage - Supply, Single (V+) | 10V ~ 30V | 10V ~ 30V | — |
| Price | $96.40 | $0.00 | $0.00 |
| Availability | In Stock | In Stock | In Stock |
