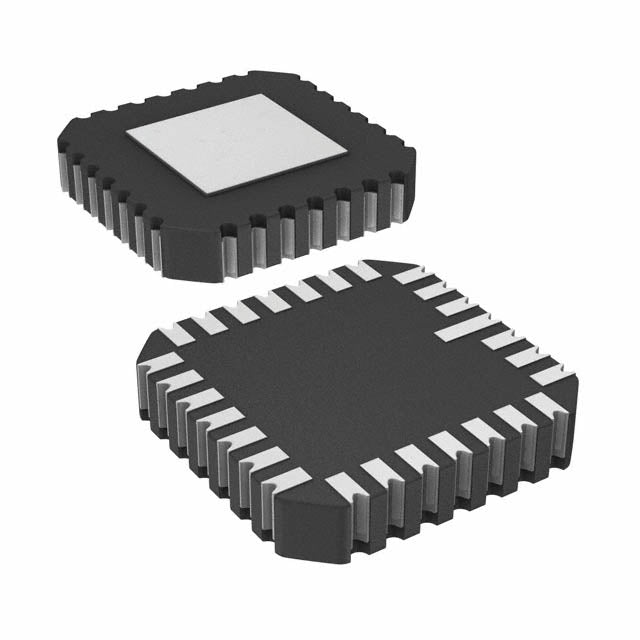

5962-89657023A–DAC, 28-LCC | Analog Devices Inc.
✓ RoHS● Discontinued at Digi-Key The 5962-89657023A is a dac from Analog Devices Inc., in 28-LCC package....
- $356.09
- $356.09
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$356.09
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x
✓ RoHS● Discontinued at Digi-Key
The 5962-89657023A is a dac from Analog Devices Inc., in 28-LCC package. Specified operating temperature: -55°C ~ 125°C.
📋 Key Specifications
- Settling Time:1.5µs
- Package / Case:28-LCC
- Operating Temperature:-55°C ~ 125°C
- Product Status:Discontinued at Digi-Key
🎯 Typical Applications
- General electronic systems (typical applications vary by specific device)
- Industrial and commercial equipment
- Consumer electronics
- Embedded systems
❓ FAQ
What is the specified operating temperature range for 5962-89657023A?
According to the specifications, the 5962-89657023A is rated for operation from -55°C ~ 125°C.
What package is the 5962-89657023A available in?
The 5962-89657023A is offered in 28-LCC package format.
Is the 5962-89657023A RoHS compliant?
Yes, the 5962-89657023A is listed as RoHS compliant.
Where can I find detailed specifications for 5962-89657023A?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Settling Time | 1.5µs |
|---|---|
| Package / Case | 28-LCC |
| Operating Temperature | -55°C ~ 125°C |
| Product Status | Discontinued at Digi-Key |
| Architecture | R-2R |
| Data Interface | Parallel |
| Differential Output | No |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Number of D/A Converters | 2 |
| Output Type | Current - Unbuffered |
| Package | Bulk |
| Reference Type | External |
| Supplier Device Package | 28-LCC (11.43x11.43) |
| Voltage - Supply, Analog | 10.8V ~ 16.5V |
| Voltage - Supply, Digital | 10.8V ~ 16.5V |
Tier Pricing
xVolume Pricing
💡 Custom Pricing Available: For quantities exceeding 10,000 units or special requirements, please contact our sales team for a customized quote. We offer competitive pricing for bulk orders.
Datasheet
x5962-89657023A Datasheet
Official datasheet from Analog Devices Inc. with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: Analog Devices Inc. • Format: PDF
5962-89657023A vs 5962-8965402XA vs 5962-89657023A
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | 5962-89657023A Current | 5962-8965402XA | 5962-89657023A |
|---|---|---|---|
| Settling Time | 1.5µs | — | 1.5µs |
| Package / Case | 28-LCC | 28-CDIP (0.600", 15.24mm) | 28-LCC |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Product Status | Discontinued at Digi-Key | Obsolete | Discontinued at Digi-Key |
| Package | Bulk | 28-CDIP (0.600", 15.24mm) | 28-LCC |
| Number of Bits | 12 | 8 | 12 |
| Number of D/A Converters | 2 | — | 2 |
| Output Type | Current - Unbuffered | — | Current - Unbuffered |
| Differential Output | No | — | No |
| Data Interface | Parallel | — | Parallel |
| Price | $356.09 | $628.23 | $356.09 |
| Availability | In Stock | In Stock | In Stock |
