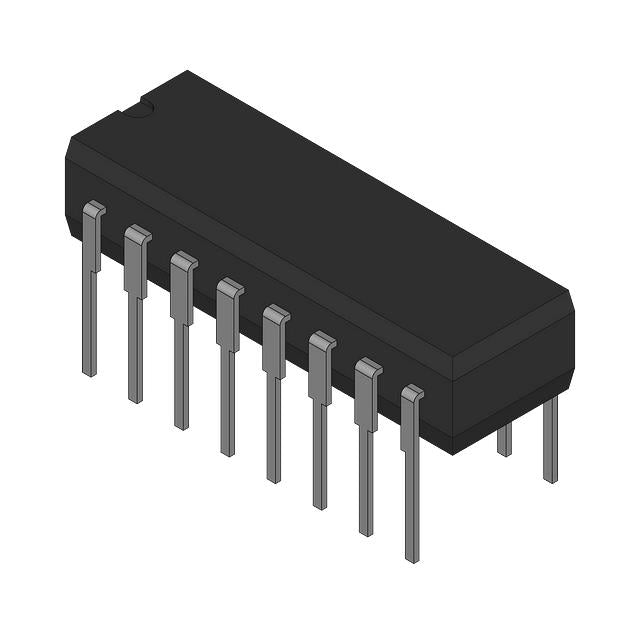

5962-8951104EA–PMIC, 16-CDIP (0.300" | Texas Instruments
● Active The 5962-8951104EA is a pmic from Texas Instruments, in 16-CDIP (0.300" package. Specified operating temperature:...
- $18.77
- $18.77
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$18.77
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x● Active
The 5962-8951104EA is a pmic from Texas Instruments, in 16-CDIP (0.300" package. Specified operating temperature: -55°C ~ 125°C.
📋 Key Specifications
- Output Type:PWM
- Number of Outputs:2
- Package / Case:16-CDIP (0.300", 7.62mm)
- Operating Temperature:-55°C ~ 125°C
- Product Status:Active
🎯 Typical Applications
- General electronic systems (typical applications vary by specific device)
- Industrial and commercial equipment
- Consumer electronics
- Embedded systems
❓ FAQ
What is the specified operating temperature range for 5962-8951104EA?
According to the specifications, the 5962-8951104EA is rated for operation from -55°C ~ 125°C.
What package is the 5962-8951104EA available in?
The 5962-8951104EA is offered in 16-CDIP (0.300" package format.
Where can I find detailed specifications for 5962-8951104EA?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Output Type | PWM |
|---|---|
| Number of Outputs | 2 |
| Package / Case | 16-CDIP (0.300", 7.62mm) |
| Operating Temperature | -55°C ~ 125°C |
| Product Status | Active |
| Clock Sync | Yes |
| Control Features | Dead Time Control, Enable, Frequency Control, Soft Start |
| Duty Cycle (Max) | 49% |
| Frequency - Switching | 100Hz ~ 500kHz |
| Function | Step-Down, Step-Up/Step-Down |
| Mounting Type | Through Hole |
| Output Configuration | Positive and Negative |
| Output Phases | 2 |
| Package | Bulk |
| Supplier Device Package | 16-CDIP |
| Synchronous Rectifier | Yes |
| Topology | Boost, Flyback, Forward, Full-Bridge, Half-Bridge, Push-Pull |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 35V |
Tier Pricing
xVolume Pricing
💡 Custom Pricing Available: For quantities exceeding 10,000 units or special requirements, please contact our sales team for a customized quote. We offer competitive pricing for bulk orders.
Datasheet
x5962-8951104EA Datasheet
Official datasheet from Texas Instruments with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: Texas Instruments • Format: PDF
5962-8951104EA vs 5962-8951104EA vs 5962-89518012A
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | 5962-8951104EA Current | 5962-8951104EA | 5962-89518012A |
|---|---|---|---|
| Output Type | PWM | PWM | — |
| Number of Outputs | 2 | 2 | — |
| Package / Case | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 20-CLCC |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Product Status | Active | Active | Discontinued at Digi-Key |
| Package | Bulk | 16-CDIP (0.300", 7.62mm) | 20-CLCC |
| Function | Step-Down, Step-Up/Step-Down | Step-Down, Step-Up/Step-Down | — |
| Output Configuration | Positive and Negative | Positive and Negative | — |
| Topology | Boost, Flyback, Forward, Full-Bridge, Half-Bridge, Push-Pull | Boost, Flyback, Forward, Full-Bridge, Half-Bridge, Push-Pull | — |
| Output Phases | 2 | 2 | — |
| Price | $18.77 | $18.77 | $328.85 |
| Availability | In Stock | In Stock | In Stock |
