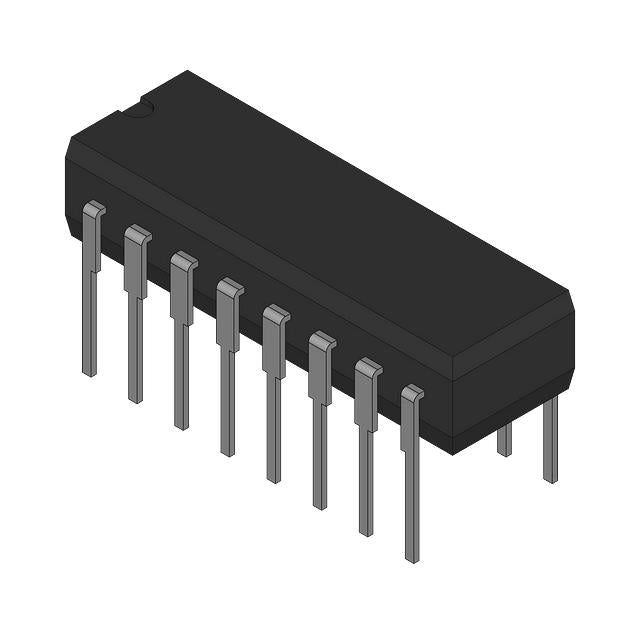

5962-8771802EA–Interface IC, 16-CDIP | Analog Devices Inc.
● Active The 5962-8771802EA is a interface ic from Analog Devices Inc., in 16-CDIP package. Specified operating...
- $51.24
- $51.24
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$51.24
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x● Active
The 5962-8771802EA is a interface ic from Analog Devices Inc., in 16-CDIP package. Specified operating temperature: -55°C ~ 125°C.
📋 Key Specifications
- Package / Case:16-CDIP
- Operating Temperature:-55°C ~ 125°C
- Product Status:Active
🎯 Typical Applications
- Communication interfaces (typical for this category)
- Level shifting and signal conditioning
- Protocol conversion
- System interconnects
❓ FAQ
What is the specified operating temperature range for 5962-8771802EA?
According to the specifications, the 5962-8771802EA is rated for operation from -55°C ~ 125°C.
What package is the 5962-8771802EA available in?
The 5962-8771802EA is offered in 16-CDIP package format.
Where can I find detailed specifications for 5962-8771802EA?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Package / Case | 16-CDIP |
|---|---|
| Operating Temperature | -55°C ~ 125°C |
| Product Status | Active |
| Channel Capacitance (CS(off), CD(off)) | 2.5pF, 7pF |
| Channel-to-Channel Matching (ΔRon) | 80Ohm |
| Crosstalk | -70dB @ 500kHz |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Mounting Type | Through Hole |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 400Ohm |
| Package | Bulk |
| Supplier Device Package | 16-CDIP |
| Switch Circuit | SP4T |
| Switch Time (Ton, Toff) (Max) | 2µs, 600ns |
| Voltage - Supply, Dual (V±) | ±15V |
| Voltage - Supply, Single (V+) | 15V |
Tier Pricing
xVolume Pricing
💡 Custom Pricing Available: For quantities exceeding 10,000 units or special requirements, please contact our sales team for a customized quote. We offer competitive pricing for bulk orders.
Datasheet
x5962-8771802EA Datasheet
Official datasheet from Analog Devices Inc. with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: Analog Devices Inc. • Format: PDF
