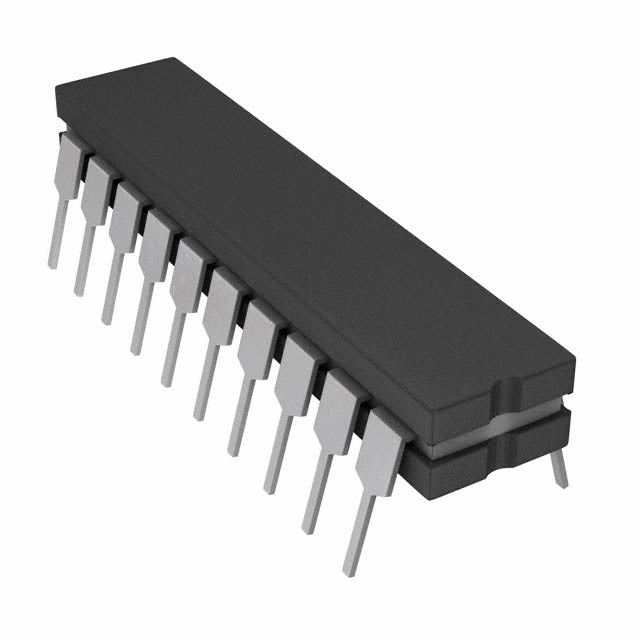

The 5962-8770101RA is a dac from Analog Devices Inc., in 20-CDIP (0.300" package. Specified operating temperature: -55°C ~ 125°C.
📋 Key Specifications
- Settling Time:400ns
- Package / Case:20-CDIP (0.300", 7.62mm)
- Operating Temperature:-55°C ~ 125°C
- Product Status:Discontinued at Digi-Key
🎯 Typical Applications
- General electronic systems (typical applications vary by specific device)
- Industrial and commercial equipment
- Consumer electronics
- Embedded systems
❓ FAQ
What is the specified operating temperature range for 5962-8770101RA?
According to the specifications, the 5962-8770101RA is rated for operation from -55°C ~ 125°C.
What package is the 5962-8770101RA available in?
The 5962-8770101RA is offered in 20-CDIP (0.300" package format.
Is the 5962-8770101RA RoHS compliant?
Yes, the 5962-8770101RA is listed as RoHS compliant.
Where can I find detailed specifications for 5962-8770101RA?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Settling Time | 400ns |
|---|---|
| Package / Case | 20-CDIP (0.300", 7.62mm) |
| Operating Temperature | -55°C ~ 125°C |
| Product Status | Discontinued at Digi-Key |
| Architecture | R-2R |
| Data Interface | Parallel |
| Differential Output | No |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Mounting Type | Through Hole |
| Number of Bits | 8 |
| Number of D/A Converters | 2 |
| Output Type | Current - Unbuffered |
| Package | Tube |
| Reference Type | External |
| Supplier Device Package | 20-CERDIP |
| Voltage - Supply, Analog | 5V ~ 15V |
| Voltage - Supply, Digital | 5V ~ 15V |
Datasheet
x5962-8770101RA Datasheet
Official datasheet from Analog Devices Inc. with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: Analog Devices Inc. • Format: PDF
5962-8770101RA vs 5962-8770003EA vs 5962-8770101RA
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | 5962-8770101RA Current | 5962-8770003EA | 5962-8770101RA |
|---|---|---|---|
| Settling Time | 400ns | 500ns | 400ns |
| Package / Case | 20-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 20-CDIP (0.300", 7.62mm) |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Package | Tube | 16-CDIP (0.300", 7.62mm) | 20-CDIP (0.300", 7.62mm) |
| Number of Bits | 8 | 8 | 8 |
| Number of D/A Converters | 2 | 1 | 2 |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | No | Yes | No |
| Data Interface | Parallel | Parallel | Parallel |
| Price | $0.00 | $125.89 | $0.00 |
| Availability | In Stock | In Stock | In Stock |
