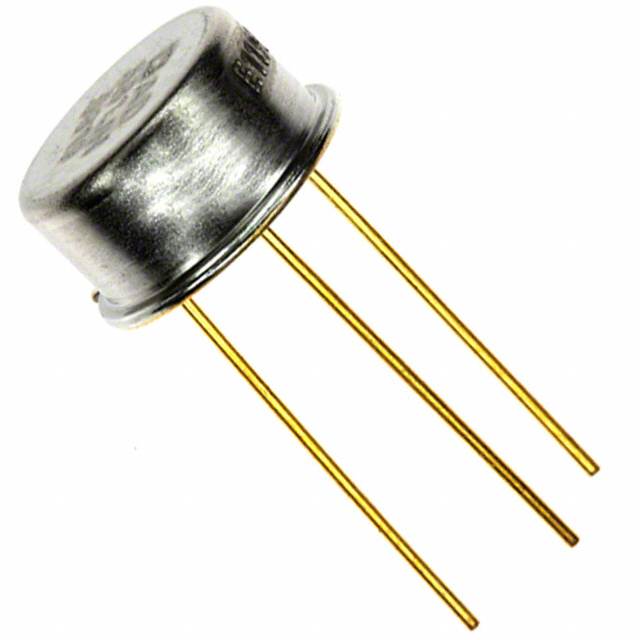

5962-8688203XA–Voltage Reference, 10V, ±0.3%, TO-205AA | Analog Devices Inc.
✓ RoHS● Discontinued at Digi-Key The 5962-8688203XA is a voltage reference from Analog Devices Inc., in TO-205AA...
Vendor:
Analog Devices Inc.
SKU:
3904287
Availability:
Many In Stock
Product type:
Voltage Reference
- $0.00
- $0.00
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$0.00
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x
✓ RoHS● Discontinued at Digi-Key
The 5962-8688203XA is a voltage reference from Analog Devices Inc., in TO-205AA package. Specified operating temperature: -55°C ~ 125°C (TA).
📋 Key Specifications
- Voltage - Output (Min/Fixed):10V
- Tolerance:±0.3%
- Reference Type:Series
- Output Type:Fixed
- Package / Case:TO-205AA, TO-5-3 Metal Can
- Mounting Type:Through Hole
- Operating Temperature:-55°C ~ 125°C (TA)
🎯 Typical Applications
- Precision measurement systems (typical for this category)
- Data acquisition (DAQ) systems
- Analog-to-digital converter (ADC) reference
- Calibration and test equipment
- Power supply feedback circuits
❓ FAQ
What is the specified operating temperature range for 5962-8688203XA?
According to the specifications, the 5962-8688203XA is rated for operation from -55°C ~ 125°C (TA).
What package is the 5962-8688203XA available in?
The 5962-8688203XA is offered in TO-205AA package format.
What is the output voltage of 5962-8688203XA?
The 5962-8688203XA provides 10V output voltage as specified.
Is the 5962-8688203XA RoHS compliant?
Yes, the 5962-8688203XA is listed as RoHS compliant.
Where can I find detailed specifications for 5962-8688203XA?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Voltage - Output (Min/Fixed) | 10V |
|---|---|
| Tolerance | ±0.3% |
| Reference Type | Series |
| Output Type | Fixed |
| Package / Case | TO-205AA, TO-5-3 Metal Can |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Current - Output | 10 mA |
| Product Status | Discontinued at Digi-Key |
| Current - Supply | 1mA |
| Noise - 0.1Hz to 10Hz | 40µVp-p |
| Package | Tube |
| Supplier Device Package | TO-5-3 |
| Temperature Coefficient | 10ppm/°C |
| Voltage - Input | 13V |
Datasheet
x5962-8688203XA Datasheet
Official datasheet from Analog Devices Inc. with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: Analog Devices Inc. • Format: PDF
5962-8688203XA vs 5962-8688202XA vs 5962-8688203XA
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | 5962-8688203XA Current | 5962-8688202XA | 5962-8688203XA |
|---|---|---|---|
| Voltage - Output (Min/Fixed) | 10V | 10V | 10V |
| Tolerance | ±0.3% | ±0.05% | ±0.3% |
| Reference Type | Series | Series, Shunt, Buried Zener | Series |
| Output Type | Fixed | Fixed | Fixed |
| Package / Case | TO-205AA, TO-5-3 Metal Can | TO-205AD, TO-39-3 Metal Can | TO-205AA, TO-5-3 Metal Can |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Operating Temperature | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) |
| Current - Output | 10 mA | 10 mA | 10 mA |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| RoHS | Compliant | Compliant | Compliant |
| Price | $0.00 | $0.00 | $0.00 |
| Availability | In Stock | In Stock | In Stock |
