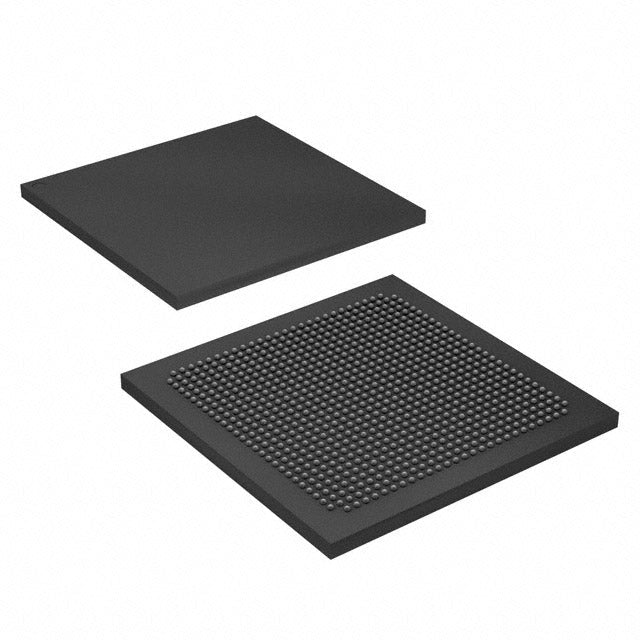

10AS022E4F29E3SG–SoC, Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ @ 1.5GHz, 780-BBGA | Altera
✓ RoHS● Active The 10AS022E4F29E3SG is a soc from Altera, featuring Dual ARM® Cortex®-A9 MPCore™ with CoreSight™...
- $877.00
- $877.00
- Unit price
- per
Please hurry! Only 29289 left in stock
Subtotal:
$877.00
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x
✓ RoHS● Active
The 10AS022E4F29E3SG is a soc from Altera, featuring Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ running at 1.5GHz, in 780-BBGA package. Specified operating temperature: 0°C ~ 100°C (TJ).
📋 Key Specifications
- Core Processor:Dual ARM® Cortex®-A9 MPCore™ with CoreSight™
- Speed:1.5GHz
- Architecture:MCU, FPGA
- RAM Size:256KB
- Package / Case:780-BBGA, FCBGA
- Operating Temperature:0°C ~ 100°C (TJ)
- Connectivity:EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
- Peripherals:DMA, POR, WDT
🎯 Typical Applications
- Consumer electronics (typical for this category)
- Network equipment and routers
- Digital signage systems
- Streaming and media devices
- Smart home controllers
❓ FAQ
What is the specified operating temperature range for 10AS022E4F29E3SG?
According to the specifications, the 10AS022E4F29E3SG is rated for operation from 0°C ~ 100°C (TJ).
What package is the 10AS022E4F29E3SG available in?
The 10AS022E4F29E3SG is offered in 780-BBGA package format.
What processor is integrated in the 10AS022E4F29E3SG?
The 10AS022E4F29E3SG integrates Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ processor.
Is the 10AS022E4F29E3SG RoHS compliant?
Yes, the 10AS022E4F29E3SG is listed as RoHS compliant.
Where can I find detailed specifications for 10AS022E4F29E3SG?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Core Processor | Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ |
|---|---|
| Speed | 1.5GHz |
| Architecture | MCU, FPGA |
| RAM Size | 256KB |
| Package / Case | 780-BBGA, FCBGA |
| Operating Temperature | 0°C ~ 100°C (TJ) |
| Connectivity | EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG |
| Peripherals | DMA, POR, WDT |
| Product Status | Active |
| Package | Tray |
| Primary Attributes | FPGA - 220K Logic Elements |
| Supplier Device Package | 780-FBGA, FC (29x29) |
Tier Pricing
xVolume Pricing
💡 Custom Pricing Available: For quantities exceeding 10,000 units or special requirements, please contact our sales team.
Datasheet
x10AS022E4F29E3SG Datasheet
Official datasheet from Altera with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: Altera • Format: PDF
10AS022E4F29E3SG vs 10AS022E4F29E3LG vs 10AS022E4F29I3LG
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | 10AS022E4F29E3SG Current | 10AS022E4F29E3LG | 10AS022E4F29I3LG |
|---|---|---|---|
| Core Processor | Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ | Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ | Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ |
| Speed | 1.5GHz | 1.5GHz | 1.5GHz |
| Architecture | MCU, FPGA | MCU, FPGA | MCU, FPGA |
| RAM Size | 256KB | 256KB | 256KB |
| Package / Case | 780-BBGA, FCBGA | 780-BBGA, FCBGA | 780-BBGA, FCBGA |
| Operating Temperature | 0°C ~ 100°C (TJ) | 0°C ~ 100°C (TJ) | -40°C ~ 100°C (TJ) |
| Connectivity | EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG | EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG | EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG |
| Peripherals | DMA, POR, WDT | DMA, POR, WDT | DMA, POR, WDT |
| Product Status | Active | Active | Active |
| RoHS | Compliant | Compliant | Compliant |
| Price | $877.00 | $1,096.27 | $1,315.51 |
| Availability | In Stock | In Stock | In Stock |
