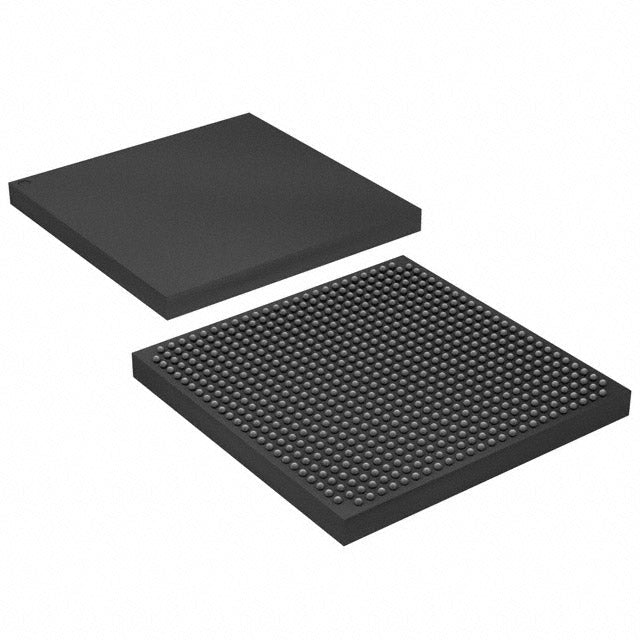

10AS016E3F27I1SG–SoC, Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ @ 1.5GHz, 672-BBGA | Altera
✓ RoHS● Discontinued at Digi-Key The 10AS016E3F27I1SG is a soc from Altera, featuring Dual ARM® Cortex®-A9 MPCore™...
- $0.00
- $0.00
- Unit price
- per
Please hurry! Only 2455 left in stock
Subtotal:
$0.00
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x
✓ RoHS● Discontinued at Digi-Key
The 10AS016E3F27I1SG is a soc from Altera, featuring Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ running at 1.5GHz, in 672-BBGA package. Specified operating temperature: -40°C ~ 100°C (TJ).
📋 Key Specifications
- Core Processor:Dual ARM® Cortex®-A9 MPCore™ with CoreSight™
- Speed:1.5GHz
- Architecture:MCU, FPGA
- RAM Size:256KB
- Package / Case:672-BBGA, FCBGA
- Operating Temperature:-40°C ~ 100°C (TJ)
- Connectivity:EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
- Peripherals:DMA, POR, WDT
🎯 Typical Applications
- Industrial automation systems (typical for this category)
- Programmable logic controllers (PLC)
- Factory and process control equipment
- Building management systems
- Industrial IoT gateways
❓ FAQ
What is the specified operating temperature range for 10AS016E3F27I1SG?
According to the specifications, the 10AS016E3F27I1SG is rated for operation from -40°C ~ 100°C (TJ).
What package is the 10AS016E3F27I1SG available in?
The 10AS016E3F27I1SG is offered in 672-BBGA package format.
What processor is integrated in the 10AS016E3F27I1SG?
The 10AS016E3F27I1SG integrates Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ processor.
Is the 10AS016E3F27I1SG RoHS compliant?
Yes, the 10AS016E3F27I1SG is listed as RoHS compliant.
Where can I find detailed specifications for 10AS016E3F27I1SG?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Core Processor | Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ |
|---|---|
| Speed | 1.5GHz |
| Architecture | MCU, FPGA |
| RAM Size | 256KB |
| Package / Case | 672-BBGA, FCBGA |
| Operating Temperature | -40°C ~ 100°C (TJ) |
| Connectivity | EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG |
| Peripherals | DMA, POR, WDT |
| Product Status | Discontinued at Digi-Key |
| Package | Tray |
| Primary Attributes | FPGA - 160K Logic Elements |
| Supplier Device Package | 672-FBGA, FC (27x27) |
Datasheet
x10AS016E3F27I1SG Datasheet
Official datasheet from Altera with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: Altera • Format: PDF
10AS016E3F27I1SG vs 10AS016E3F27I1HG vs 10AS016E3F27I2LG
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | 10AS016E3F27I1SG Current | 10AS016E3F27I1HG | 10AS016E3F27I2LG |
|---|---|---|---|
| Core Processor | Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ | Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ | Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ |
| Speed | 1.5GHz | 1.5GHz | 1.5GHz |
| Architecture | MCU, FPGA | MCU, FPGA | MCU, FPGA |
| RAM Size | 256KB | 256KB | 256KB |
| Package / Case | 672-BBGA, FCBGA | 672-BBGA, FCBGA | 672-BBGA, FCBGA |
| Operating Temperature | -40°C ~ 100°C (TJ) | -40°C ~ 100°C (TJ) | -40°C ~ 100°C (TJ) |
| Connectivity | EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG | EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG | EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG |
| Peripherals | DMA, POR, WDT | DMA, POR, WDT | DMA, POR, WDT |
| Product Status | Discontinued at Digi-Key | Active | Active |
| RoHS | Compliant | Compliant | Compliant |
| Price | $0.00 | $0.00 | $0.00 |
| Availability | In Stock | In Stock | In Stock |
