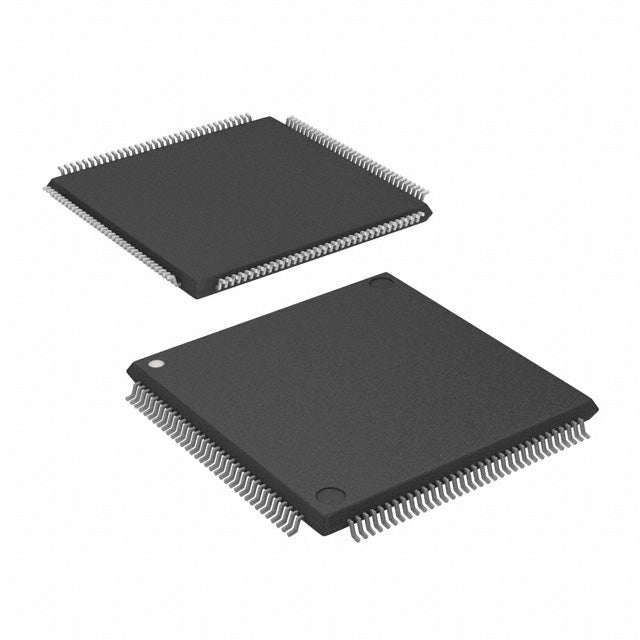

M2GL005S-1TQG144T2–FPGA, 6060 Logic Elements, 144-LQFP | Microchip Technology
✓ RoHS● Active The M2GL005S-1TQG144T2 is a fpga from Microchip Technology, in 144-LQFP package. Specified operating temperature:...
- $0.00
- $0.00
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$0.00
10 customers are viewing this product
Couldn't load pickup availability
Global Express Shipping
Free shipping on orders over $1,000
DHL / FedEx / UPS — Delivery in 3-7 business days
30-Day Return Guarantee
Hassle-free returns within 30 days.
100% Authentic & Traceable
COC & AS6081 inspection for every order.
Description
x
✓ RoHS● Active
The M2GL005S-1TQG144T2 is a fpga from Microchip Technology, in 144-LQFP package. Specified operating temperature: -40°C ~ 125°C (TJ).
📋 Key Specifications
- Number of Logic Elements/Cells:6060
- Total RAM Bits:719872
- Number of I/O:84
- Package / Case:144-LQFP
- Operating Temperature:-40°C ~ 125°C (TJ)
- Voltage - Supply:1.14V ~ 2.625V
🎯 Typical Applications
- High-speed digital signal processing (typical for this category)
- Hardware acceleration applications
- Video and image processing systems
- Prototyping and hardware emulation
- Custom digital logic implementation
❓ FAQ
What is the specified operating temperature range for M2GL005S-1TQG144T2?
According to the specifications, the M2GL005S-1TQG144T2 is rated for operation from -40°C ~ 125°C (TJ).
What package is the M2GL005S-1TQG144T2 available in?
The M2GL005S-1TQG144T2 is offered in 144-LQFP package format.
How many logic elements does the M2GL005S-1TQG144T2 have?
The M2GL005S-1TQG144T2 contains 6060 logic elements/cells.
Is the M2GL005S-1TQG144T2 RoHS compliant?
Yes, the M2GL005S-1TQG144T2 is listed as RoHS compliant.
Where can I find detailed specifications for M2GL005S-1TQG144T2?
The complete datasheet with detailed specifications is available for download above.
💡 Need Pricing?
Contact us for stock status and volume pricing.
Specifications
x| Number of Logic Elements/Cells | 6060 |
|---|---|
| Total RAM Bits | 719872 |
| Number of I/O | 84 |
| Package / Case | 144-LQFP |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Voltage - Supply | 1.14V ~ 2.625V |
| Product Status | Active |
| DigiKey Programmable | Not Verified |
| Mounting Type | Surface Mount |
| Package | Tray |
| Supplier Device Package | 144-TQFP (20x20) |
Datasheet
xM2GL005S-1TQG144T2 Datasheet
Official datasheet from Microchip Technology with complete electrical specifications, application circuits, and package information.
Download PDF DatasheetSource: Microchip Technology • Format: PDF
M2GL005S-1TQG144T2 vs M2GL005S-1TQG144T2 vs M2GL005S-1VF256
Same silicon die in different packages — compare I/O count, footprint, and form factor to find the best fit for your PCB design.
| Parameter | M2GL005S-1TQG144T2 Current | M2GL005S-1TQG144T2 | M2GL005S-1VF256 |
|---|---|---|---|
| Number of Logic Elements/Cells | 6060 | 6060 | 6060 |
| Total RAM Bits | 719872 | 719872 | 719872 |
| Number of I/O | 84 | 84 | 161 |
| Package / Case | 144-LQFP | 144-LQFP | 256-LFBGA |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | 0°C ~ 85°C (TJ) |
| Voltage - Supply | 1.14V ~ 2.625V | 1.14V ~ 2.625V | 1.14V ~ 2.625V |
| Product Status | Active | Active | Active |
| RoHS | Compliant | Compliant | — |
| Price | $0.00 | $0.00 | $19.48 |
| Availability | In Stock | In Stock | In Stock |
